Flat lamination

In modern furniture, wood-based panels are laminated with the most diverse materials.

Frequently used laminating materials are decor foils, veneers, thermoplastic foils, CPL and HPL. The mentioned materials are bonded using a variety of technologies, which demands specific adhesive solutions. MITOL offers innovative adhesives based on formaldehyde free PVAC dispersions meeting the requirements for durability class D1, D2 and D3 quality according to EN 204, as well as special copolymer dispersions for gluing thermoplastic foils. For difficult gluing surfaces, like laminated particle board, 1C polyurethane adhesives based on moisture curing prepolymer is are the proper solution.

SELECTION OF PRODUCTS

Product Base Viscosity(mPas)

at 23°C

MFFT (°C) Open Assembly time (min) Pressing time (min), Durability group Specia properties
MEKOL 1001/M PVAc dispersion 8000 – 11 500 approx. 5 15 – 18 25 – 30 (RT) D1 meets the requirements IMO Resolution A.1/3.18e (Modul B),
MEKOL 1031 PVAc dispersion 8500 – 11 500 approx. 10 12 – 15 20 – 25 /RT D3 warm pressing
MEKOL 1120 PVAc dispersion 7500 – 10 500 approx. 8 7 – 10 15 – 20 /RT D2 fast setting glue
MEKOL 1131 PVAc dispersion 7000 – 10 000 approx. 6 7 – 10 15 – 30 /RT D3 Watt’91(80°C)>7 N/mm2
MEKOL 1163 PVAc dispersion 7000 – 10 000 approx. 5 7 – 10 15 – 30 /RT D1/D2 high bond strength
MEKOL 1904 copolymer dispersion 14 000 – 18 000 <0 1 – 2 continious process / PVC   and PP foil lamination
MEKOL 1921 copolymer dispersion 15 000 – 20 000 <0 2 – 3 continious process / PVC, PP and decor foil lamination; high initial tack
MITOPUR E20 1C PUR prepolymer 2500 – 4000 / 12 – 20 20 – 60 /RT D4 bonding sheet metal, isolation materials and wood
UROKOL P 410 one shot urea- formaldehyde resin 250 – 450 (20°C; 50% water dispersion) / 5 – 7 0,8 – 1,3 /100°C / veneering in hot press > 100°C; E1 class
TERMOKOL PUR 2524 PUR hot melt 10 000 – 20 000 (at 120°C) / medium, approx. 10 minutes short, continious process D4 high green strength, excelent adhesion on wood and plastic materials, excelent heat resistant

Furniture manufacture

The manufacturing process with individual requirements and highest demands for product design and quality needs innovative adhesive products.

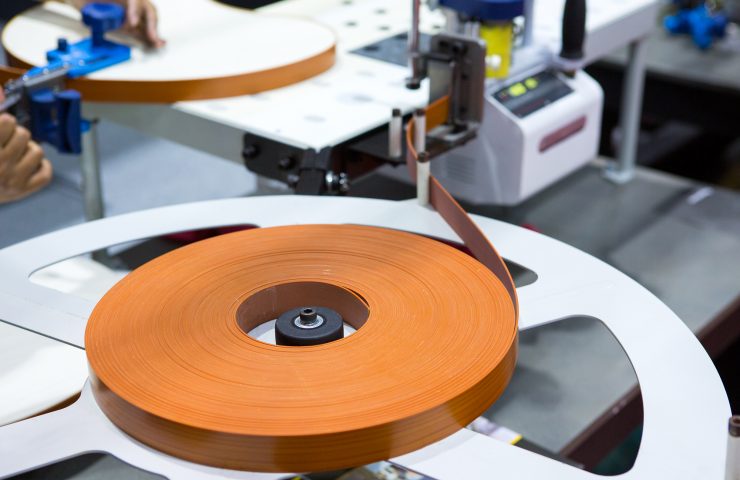

Edgebanding

Mitol has met the challenges of modern furniture and offers the products for ultramodern edgebanding technologies, but also for the conventional bonding.

3D lamination

3D thermally coated furniture fronts represent an important segment in the furniture industry.
